Candela
Power without pollution

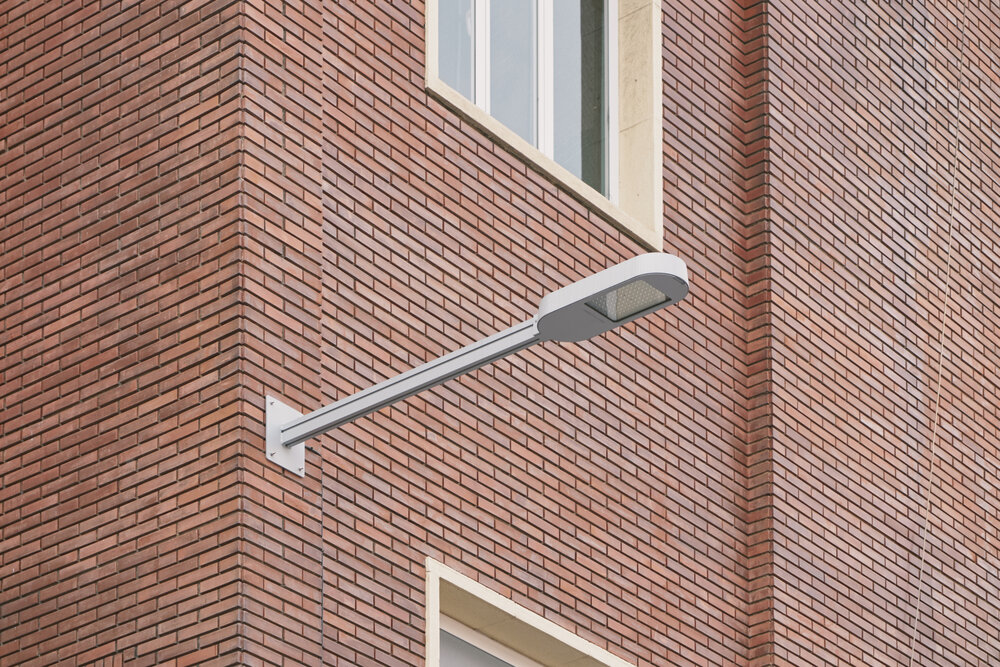

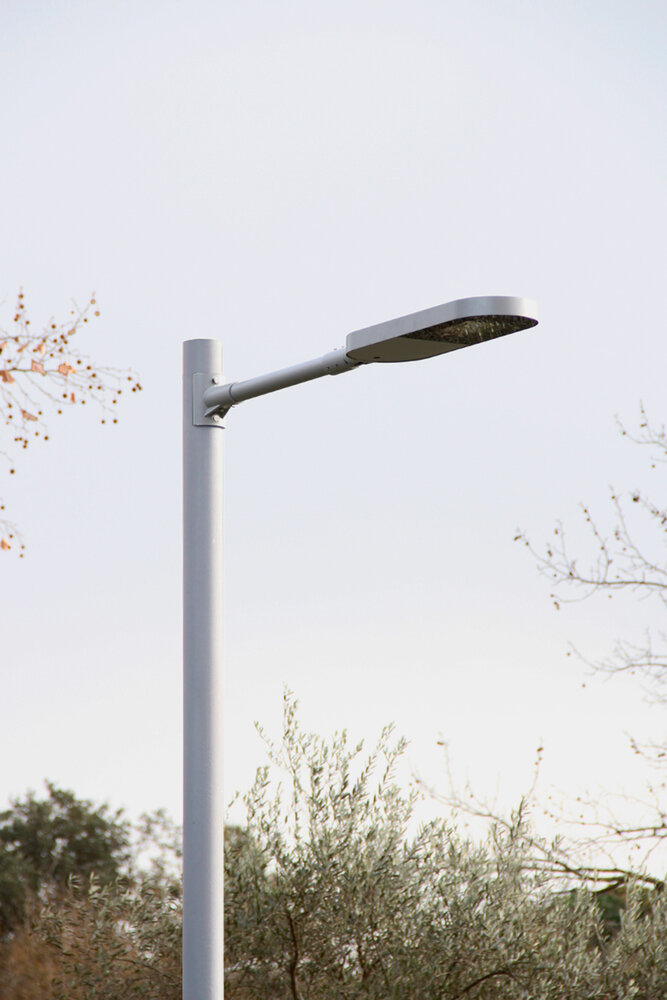

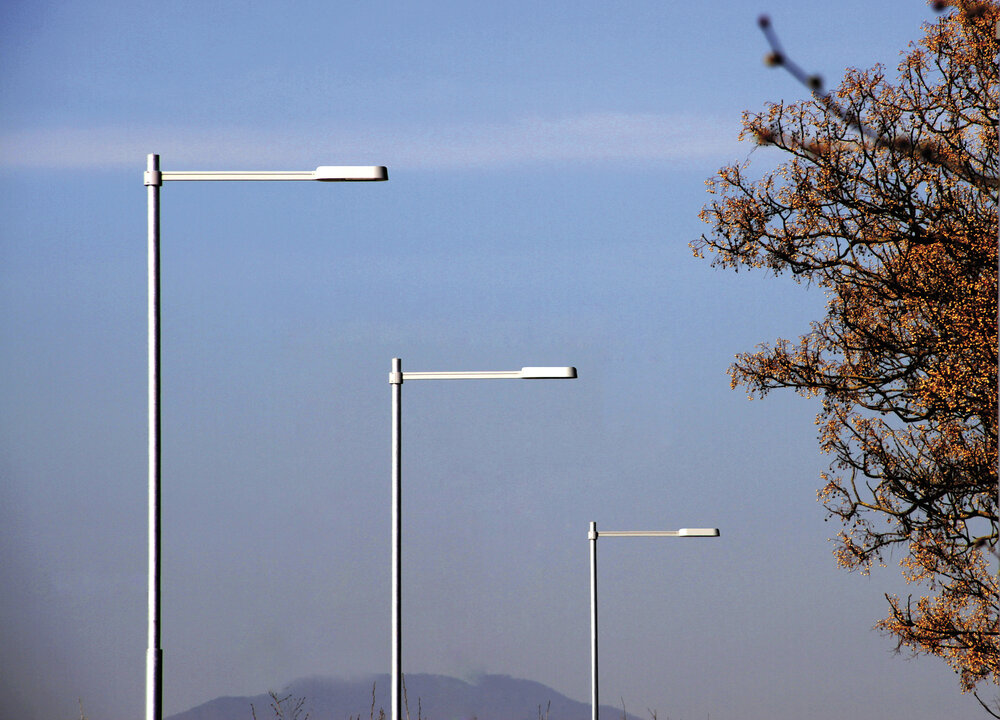

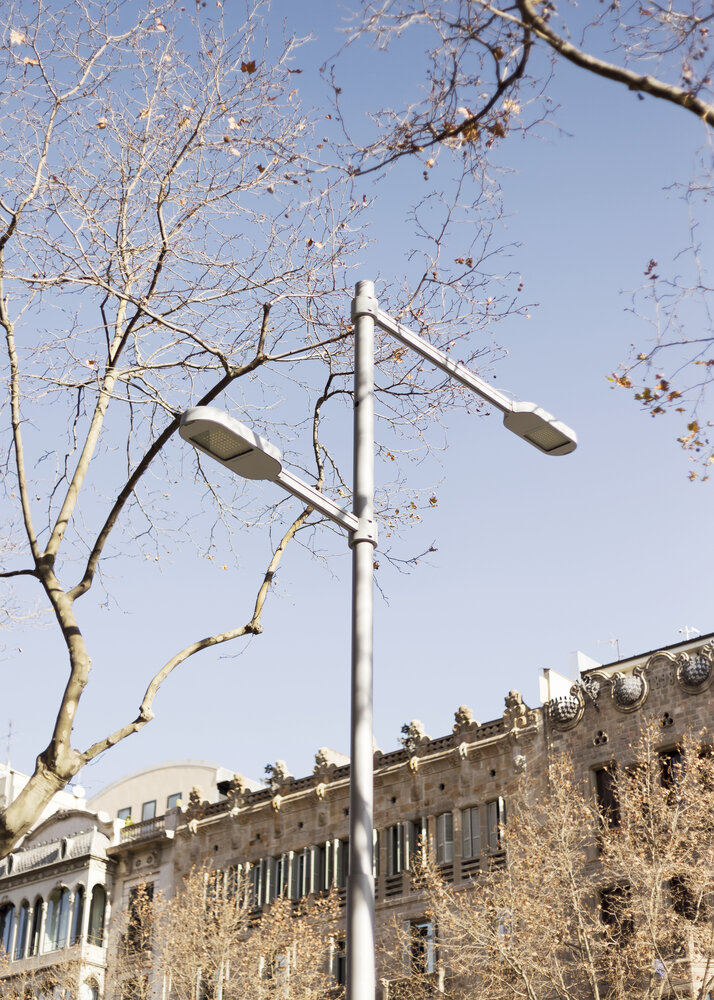

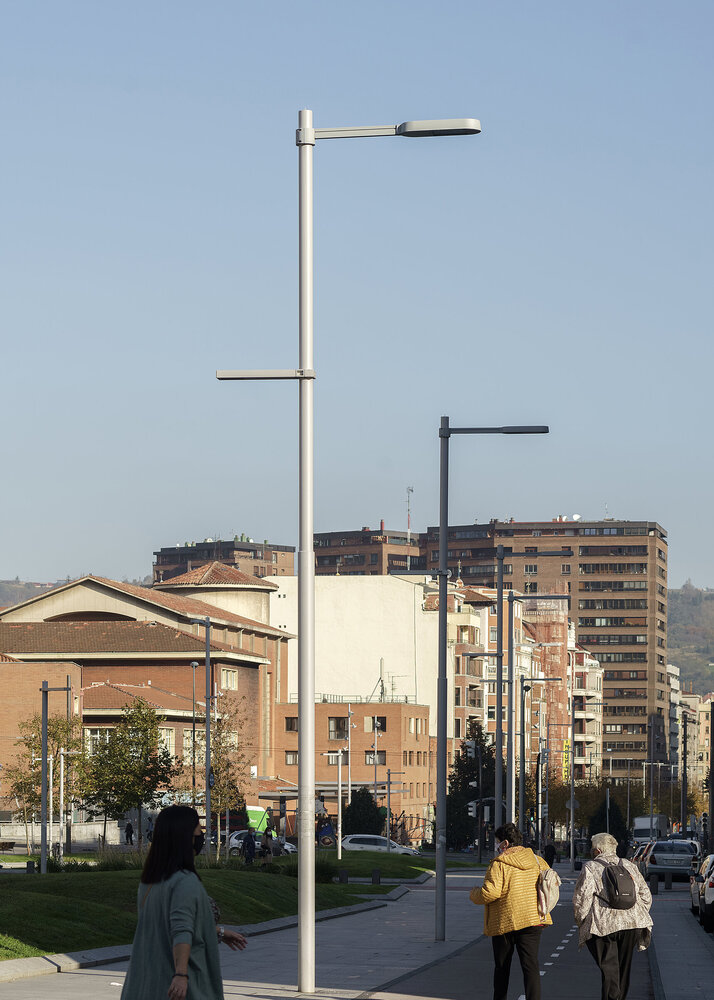

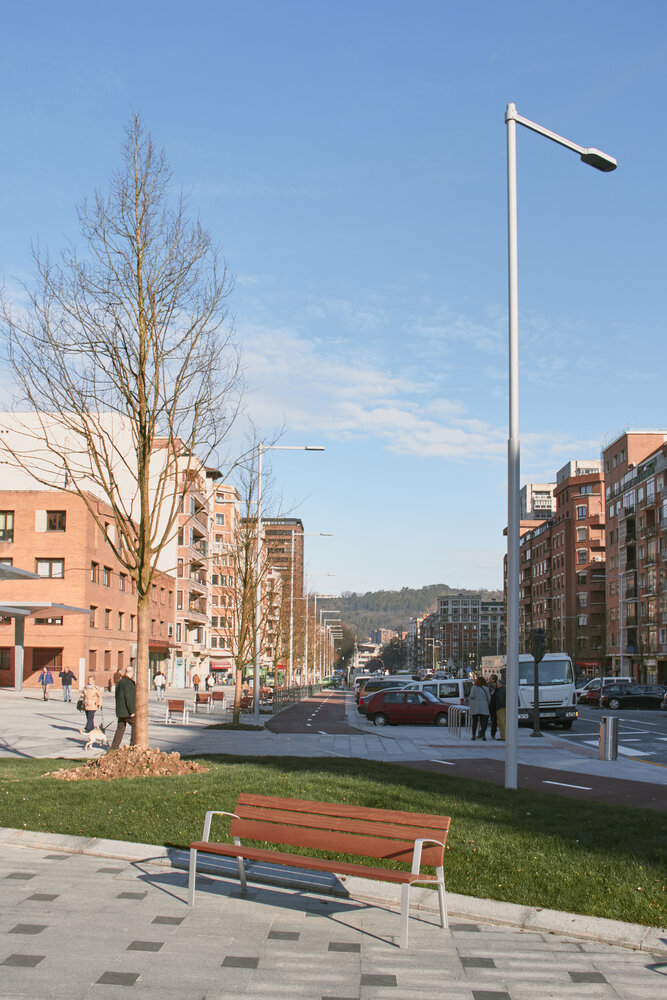

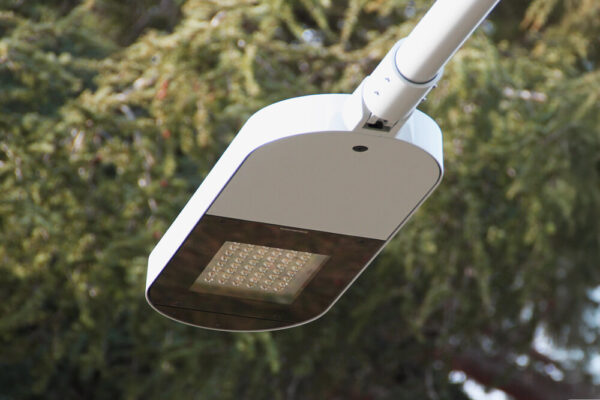

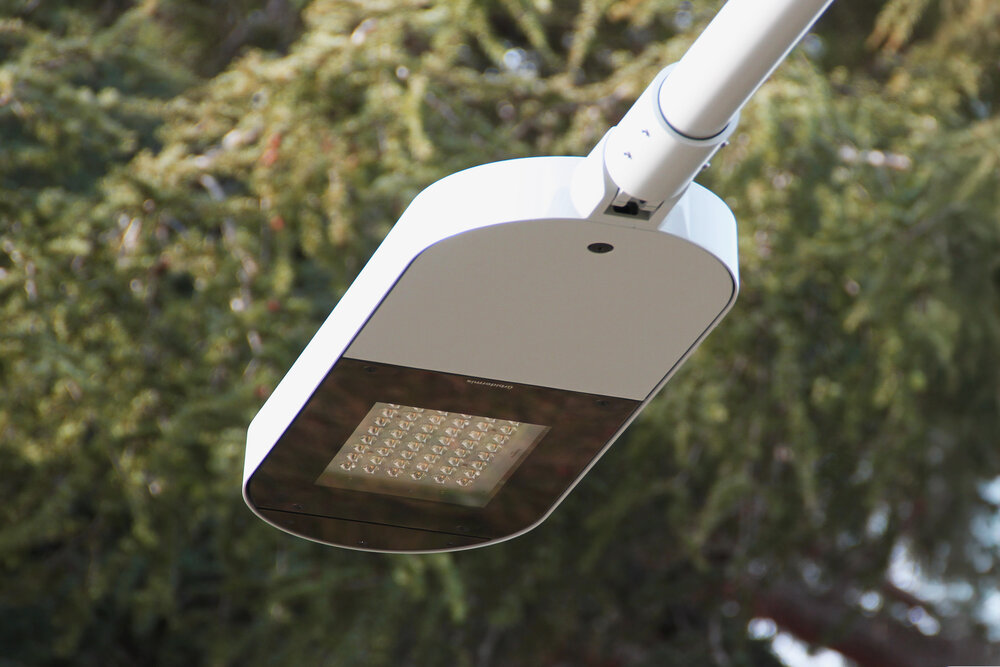

The Candela urban luminaire contains the optical and electrical assembly, neatly arranged. Its high degree of efficiency, the option for regulation, and a specific light layout using a wide range of optics, provides good visual comfort and specific illumination on roads, avenues or wide pedestrian pavements, with no light pollution.
Materials
Anodised injection-moulded aluminium EN-AC-47100 flange with powder-coated finish. Hot-dip galvanized, powder-coated steel arm. A2 stainless steel hardware.
Column, with one or two sections, made of hot-dip galvanized cylindrical S-275 JR Class 1 steel tube with a powder-coated finish. Zinc-plated steel (275) bolts. Zinc-plated steel hardware.
Installation
Column secured via a concrete block, with a groove for electrical connection, which is produced on site with four anchoring bolts per column, 20 cm below the level of the pavement.
Template and anchoring bolts included.
Weight
Luminaire: 11.5
Flange: 0.7
Short arm: 1.6
Medium arm: 2.1
Long arm: 4.0
*Approximate weight without packaging (kg)
:DIMENSIONS
