Slope
Powerful, but small in size

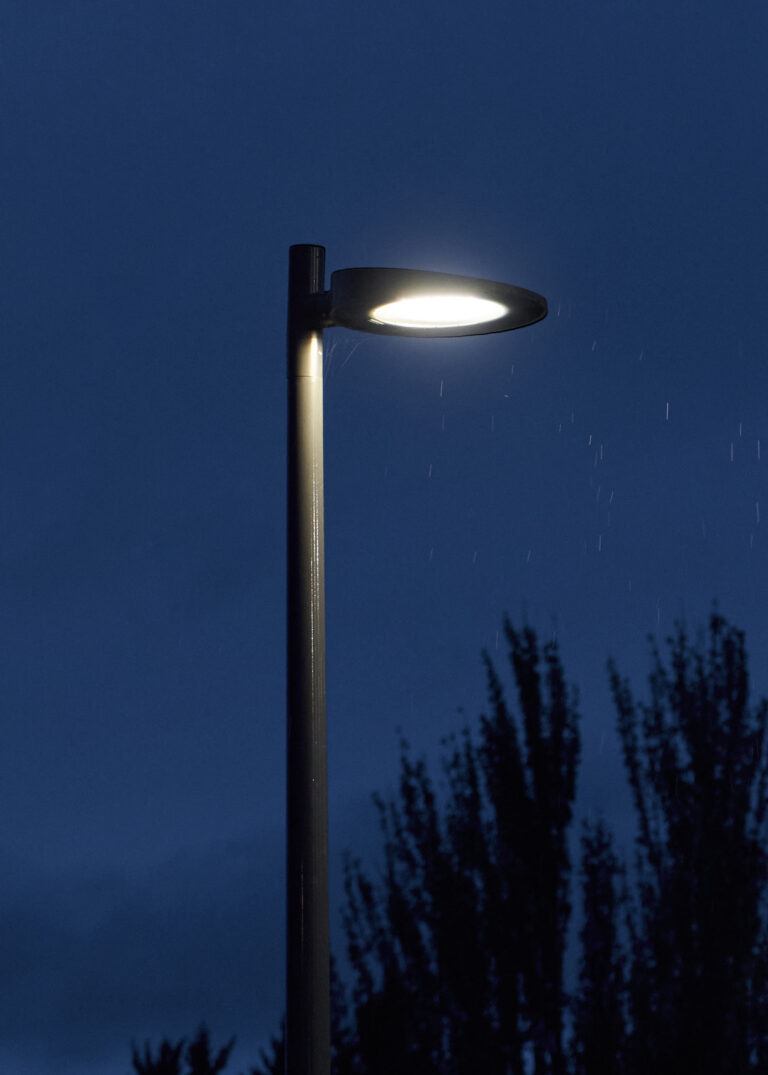

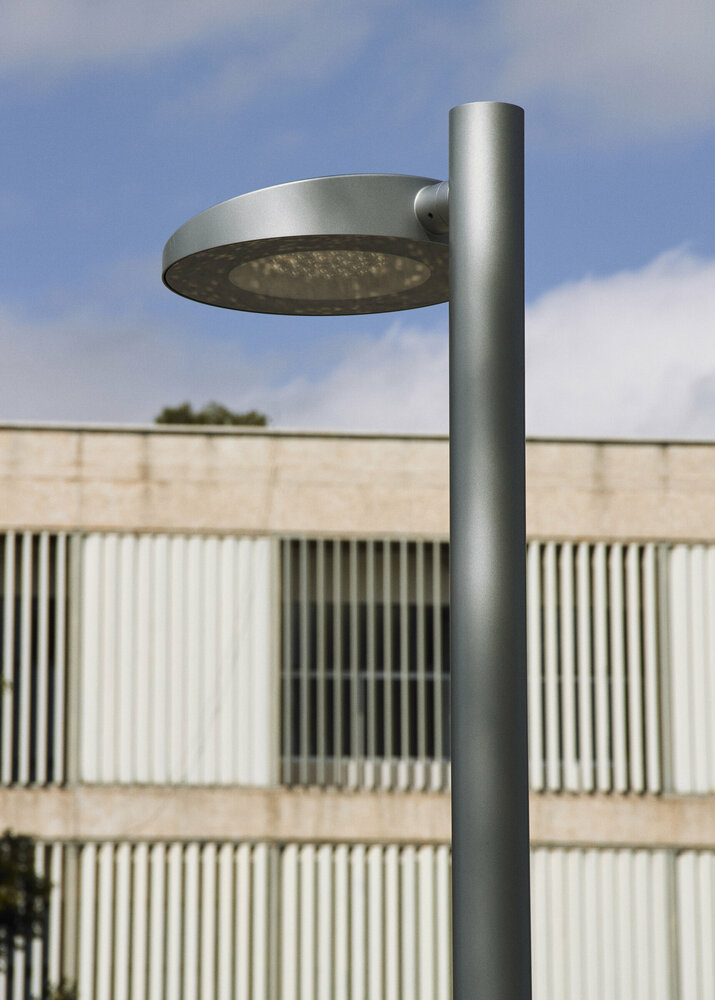

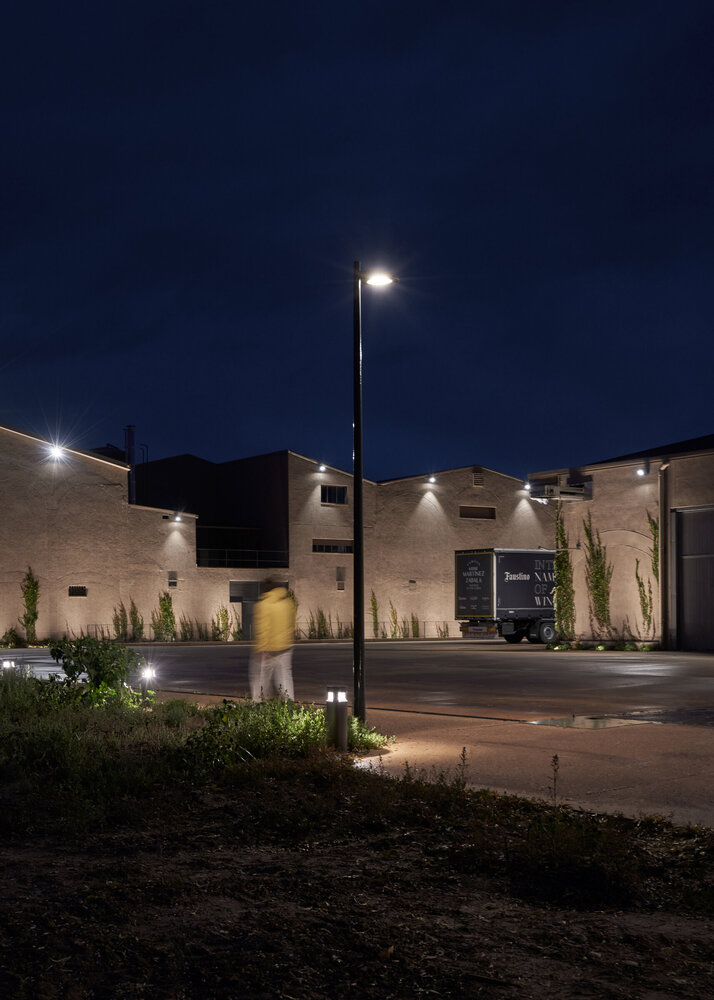

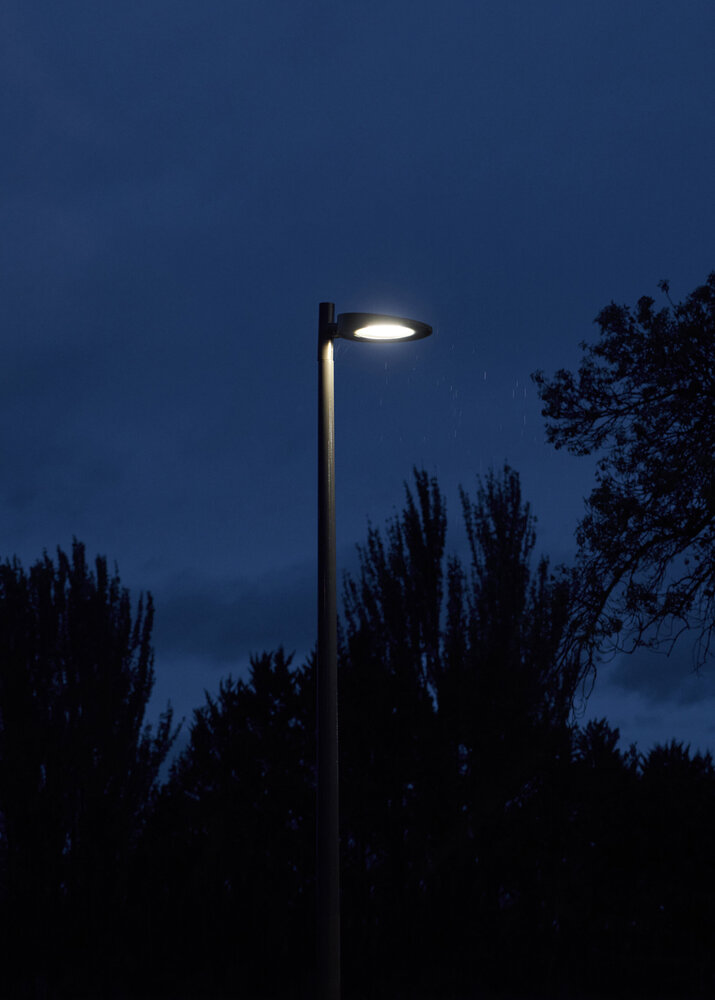

The rotation of its arm, and the vertical flow of the luminaire allows for non-invasive, efficient, comfortable lighting. It incorporates a wide range of road layouts that guarantee uniform lighting values, visual comfort and maintenance savings.
Materials
Accessory for cylindrical columns of Ø114.3 mm, and for top pole sleeves of Ø50 mm, made from die cast EN-AC-44100 aluminum, thermal coating finish. A2 stainless steel screws. Column made from hot-dip galvanized S-275 JR Class 1 steel, painted finish: 3.60 m, 4.40 m, 5.20 m, 6.00 m heights with one circular section segment of Ø114.3 mm; 6.80 m height with two circular section segments, the upper one of Ø114.3 mm and the lower one of Ø152 mm.
Installation
Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level. Installation and assembly instructions, screws, template, and anchor bolts included.
Weight
Luminaire: 6
Single column accessory: 0.4
Single retrofit column accessory: 0.5
Double column accessory: 0.6
Column top pole accessory: 0.5
*Approximate weight without packaging (kg)
:DIMENSIONS
